Alarms – Signals

Signals Condition provides comprehensive monitoring of stream parameters – including stream structure, data loss, audio/video decoding.

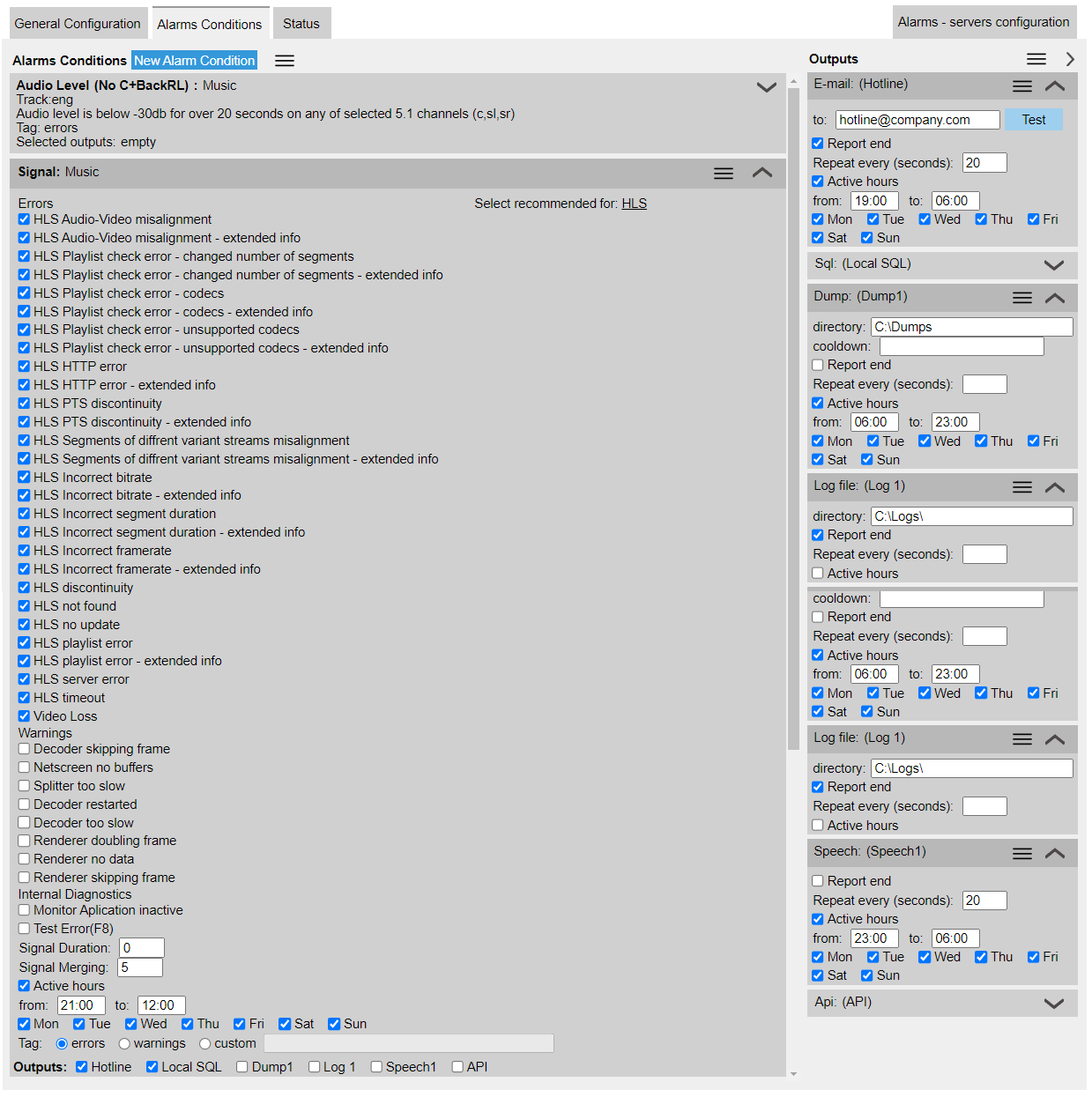

To automatically select recommended options for your input type click “Select recommended for: XXX”.

Internal diagnostics

  • Monitor application inactive – only works with when configured with IPMV Monitor application. Triggers alarm when Monitor application is not running.

Important options

  • Signal Duration: for how long (in seconds) selected source conditions must be triggered for the alarm to be executed. Default value: 0 seconds
  • Signal Merging: if break between multiple selected source conditions of the same time will be lower than configured value (in seconds) they will be considered as one event. Default value: 5 seconds

Errors section

Options available for all sources:

  • Video Loss – triggered when there is no video available for display – for any reason. Including network delivery, stream state, software or hardware issues or configuration issues. This is an “umbrella” condition – including all other conditions which may result in no video being displayed.

Additional alarms available for MPEG-TS based sources – MPEG-TS and SRT:

  • TS Continuity Error
  • TS Extraction Error
  • No TS PAT
  • No TS PCR
  • No TS PMT
  • No DVB Program Names
  • No UDP/RTP data received
  • PTS-PCR mismatch

Additional DVB TR 101 290 alarms for MPEG-TS based sources – MPEG-TS and SRT. Available only with IPMV Enterprise license.

  • 1.1 TS_sync_loss (TR290)
  • 1.2 Sync_byte_error (TR290)
  • 1.3a PAT_error_2 (TR290)
  • 1.4 Continuity_count_error (TR290)
  • 1.5a PMT_error_2 (TR290)
  • 1.6 PID_error (TR290)
  • 2.1 Transport_error (TR290)
  • 2.2 CRC_error (TR290)
  • 2.3a PCR_repetition_error (TR290)
  • 2.3b PCR_discontinuity_indicator_error (TR290)
  • 2.4 PCR_accuracy_error (TR290)
  • 2.5 PTS_error (TR290)
  • 2.6 CAT_error (TR290)

Additional alarms available for MPEG-TS, SRT and HLS

  • Video Decoding Freeze – video decoder stopped decoding frames
  • Video Decoder Error – video decoder returned an error

Additional alarms available for NDI:

  • NDI no data – no NDI data received

Additional alarms available for OTT:

  • OTT discontinuity – gap in OTT stream
  • OTT stream error – error in OTT stream

Additional alarms available for HLS – requires IPMV Enterprise license:
note: “extended info” alarms will include additional information about error detected

  • HLS Audio-Video misalignment
  • HLS Playlist check error – changed number of segments
  • HLS Playlist check error – codecs
  • HLS Playlist check error – unsupported codecs
  • HLS HTTP error
  • HLS PTS discontinuity
  • HLS Segments of different variant streams misalignment
  • HLS Incorrect bitrate
  • HLS Incorrect segment duration
  • HLS Incorrect framerate
  • HLS discontinuity
  • HLS not found
  • HLS no update
  • HLS playlist error
  • HLS server error
  • HLS timeout

Additional options available for SRT:

  • SRT no connection
  • SRT packet loss
  • SRT no data/data loss

Warnings section

Used for diagnostics purposes only
